0.5mm Gadolinium Gallium Garnet EPI Polish GGG Crystal For YIG

  • 1
  • 2

Brand Name : Crystro

Model Number : CR210330-4

Certification : SGS/COC/ROHS

Place of Origin : China

MOQ : 1pc

Price : USD 20-500/pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs per month

Delivery Time : 4-5weeks

Packaging Details : Transparent clean box

Material : Gadolinium Gallium Garnet GGG Substrates EPI Polish For YIG

Diameter : 3Inch,4inch

Thick : 0.5mm，1mm

Tolerance : +/-0.02mm

Brand : CRYSTRO

Origin : China

Inspection Report : Offered

Pack : Vacuum encapsulation

Contact Now

Gadolinium Gallium Garnet GGG Substrates EPI Polish For YIG

Gadolinium Gallium Garnet is a crystalline garnet (mixed oxide) material with numerous optical applications in addition to acting as a substrate for the growth of other carnet crystals. Crystro manufactures gadolinium gallium garnet in forms such as single crystals, ingots, boules, wafers in both standard and custom dimensions. We offer both polished (single or double sided) and unpolished forms; materials can be doped with rare earths and other elements.

Main Advantages:

  • Large dimensions,from 2.8 to 76mm.
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2)

Main Properties:

Chemical Formula Gd3Ga5O12
Lattic Parameter a=12.376Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm

CRYSTRO supply GGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/4 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%
Large Dimensions of Crystals

2.8-76 mm in diameter

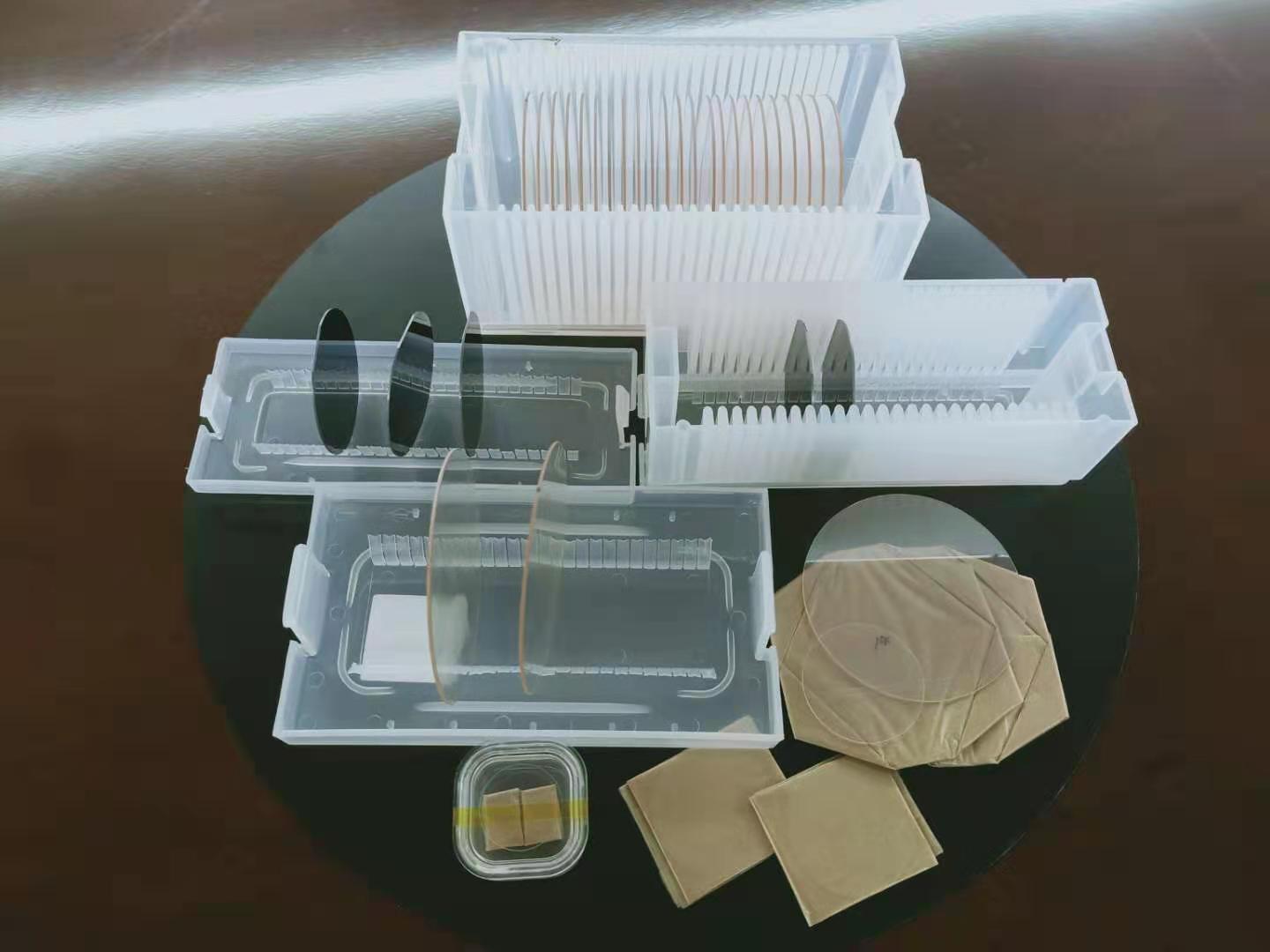

0.5mm Gadolinium Gallium Garnet EPI Polish GGG Crystal For YIG
