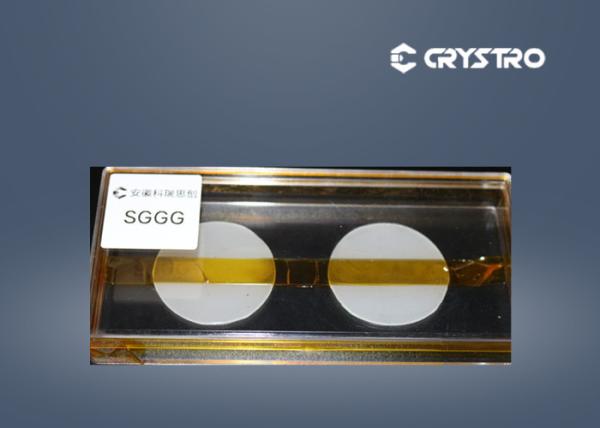

7.09 G/Cm3 EPI Polished 10x10x0.5mm GSGG Single Crystal

Name: 709 GCm3 EPI Polished 10x10x05mm GSGG Single Crystal
Brand: Crystro
Price: 1 USD

7.09 G/Cm3 EPI Polished 10x10x0.5mm GSGG Single Crystal Manufactures

Brand Name : Crystro

Model Number : CR200629-04

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs per month

Delivery Time : 3-4weeks

Packaging Details : Transparent clean box

Material : GSGG

Polish : EPI polished

Surface Roughness : < 10A by AFM 5x5 microm area

Crystal growth method : Czochralski

Orientation : (100), (111) +/-0.5°

Diameter Tolerance : ±0.05mm

Length Tolerance : ±0.2mm

Size : Customized

Contact Now

7.09 G/Cm3 EPI Polished 10x10x0.5mm GSGG Single Crystal

SGGG single crystal, substituted gadolinium gallium garnet is grown by Czochralski method .

GGG/SGGG/NGG Garnets are used for liquid epitaxy.SGGG subatrates is dedicated substrates for magneto-optical film.In the optical communication devices,require a lot of using 1.3u and 1.5u optical isolator,it's core component is YIG or BIG film been placed in a magnetic field.

SGGG substrate is excellent for growing bismuth-substituted iron garnet epitaxial films,is good material for YIG,BiYIG,GdBIG.

It's good physical and mechanical properties and chemical stability.

Application:

YIG,BIG epitaxy film;

Microwave devices;

Substitute GGG

Properties:

Composition	(Gd2.6Ca0.4)(Ga4.1Mg0.25Zr0.65)O12

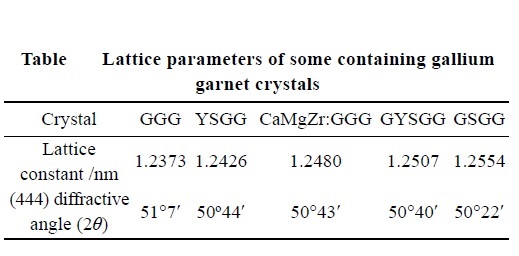

Crystal Structure	Cubic: a =12.480 Å ,
Molecular wDielectric constanteight	968,096
Melt Point	~1730 oC
Density	~ 7.09 g/cm3
Hardness	~ 7.5 ( mohns)
Refractive index	1.95
Dielectric constant	30
Dielectric loss tangent (10 GHz)	ca. 3.0 * 10_4
Crystal growth method	Czochralski
Crystal growth direction	<111>

CRYSTRO supply GGG crystal with:

Orientation	<111> <100> within ±15 arc min
Wave Front Distortion	<1/4 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Large Dimensions of Crystals	2.8-76 mm in diameter

7.09 G/Cm3 EPI Polished 10x10x0.5mm GSGG Single Crystal
