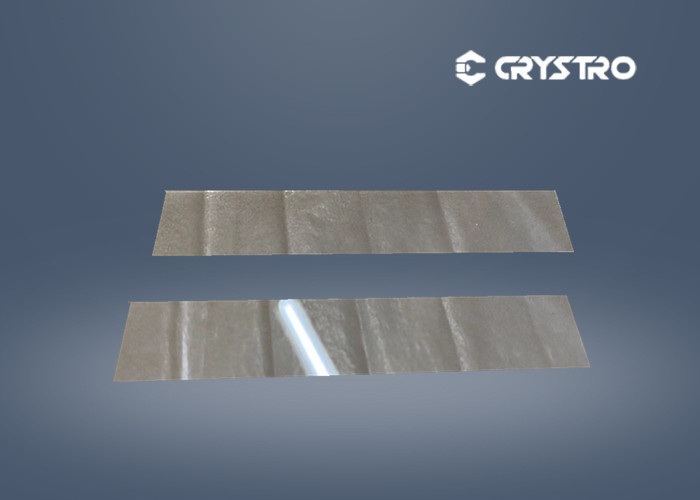

CR AU Coating Lithium Tantalate LiTaO3 Piezoelectric Effect Crystals

  • 1
  • 2

Brand Name : Crystro

Model Number : CR2111261-01

Certification : SGS/COC

Place of Origin : China

MOQ : 1pc

Price : USD 20~200/pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 20000pcs per month

Delivery Time : 1-4 weeks

Packaging Details : Transparent clean box

Material : CR AU Coating Lithium Tantalate LiTaO3 Piezoelectric Effect Crystals

Crystal Sturucture : Trigonal,a = 5.154, c = 13.784A

Melting Point : 1650℃

Density : 7.45g/cm3

Transparency Range : 400 – 5000 nm

Absorption edge : 270nm

Refractive Indices : no=2.176,ne=2.180(at 0.633 µm) no=2.131,ne=2.134(at 1.2 µm)

Packing : individual container for each substrate, packed in bag filled with inert gas.

Contact Now

CR AU Coating Lithium Tantalate LiTaO3 Piezoelectric Effect Crystals

Lithium tantalate (LiTaO3) is a perovskite which possesses unique optical, piezoelectric and pyroelectric properties which make it valuable for nonlinear optics, passive infrared sensorssuch as motion detectors, terahertz generation and detection, surface acoustic waveapplications, cell phones and possibly pyroelectric nuclear fusion. Considerable information is available from commercial sources about this salt.


Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates

Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature


Properties:

Properties LiTaO3(LT)
Type of Material Single Crystal
Crystal Structure Trigonal,a = 5.154, c = 13.784Å
Melting Point 1650℃
Curie Temperature 607℃
Transmission Range 400 – 5000 nm
Absorption edge 270nm
Absorption loss < 0.15 %/cm @ 1064 nm
Refractive Index no=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density 7.45g/cm3
Thermal Conductivity 8.78x 10-7 m2/sec
Optical homogeneity ~10-5
Hardness (Mohs) 5
Elastic Coefficient CE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constant ε11/ε0 52.7
ε33/ε0 44.5
Solubility in Water insoluble in water
NLO Coefficients d33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficients r31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold 2 MW/cm2@532nm
Standard Diameter dia150x50mm



Note: Other sizes and coatings are available upon request.

Crystal orientations available: Z-cut, X-cut, Y-cut

Typical product sizes available
Bulk crystals:
up to 4 inch diameter and 50 mm thick

Crystal substrates / wafers (single side or double side polished)
10 x 10 x 0.5 mm
2 inch diameter x 0.5mm thick
4 inch diameter x 0.5mm thick

Crystro can offer other size and specification of wafers upon request.
