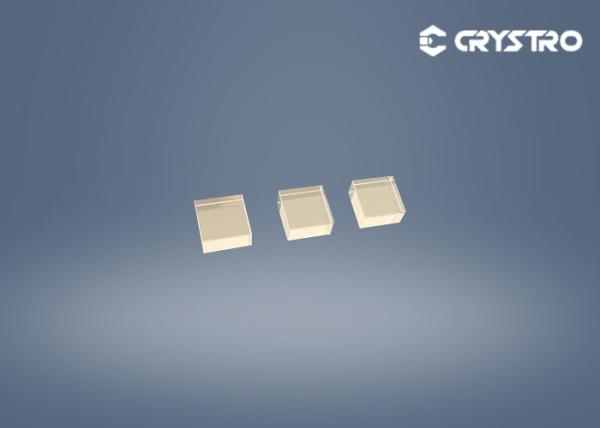

5mm TB3Ga5O12 TGG Faraday Optical Magneto Optical Crystals

  • 1
  • 2

Brand Name : Crystro

Model Number : CR1212301-05

Certification : SGS/ROHS/REACH

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 10000pcs per week

Delivery Time : 3-4 weeks

Packaging Details : Transparent clean box

Item : Size 10x10x5mm TB3Ga5O12 TGG heFaraday Optical Crystal

Size : 10x10x5mm

Extinction Ratio : 30-40dB

Origin : China

Density : 7.13g/cm3

Growth Method : Czochralski

Lattic Parameter : a=12.355Å

Chemical Formula : TB3Ga5O12

Contact Now

Size 10x10x5mm TB3Ga5O12 TGG heFaraday Optical Crystal

Applications:

  • Faraday Rotator

  • Faraday polarizer

  • Magnetic sensor

  • Faraday Isolator

  • Fiber Isolator

Description:

Faraday polarizer is composed of the TGG crystal rod and a specially designed magnet. The polarization of the beam through the magneto-optical materials deflexed and direction of the deflection only has some relations with the direction of the magnetic field and has nothing to do with the direction of the beam propagation. An optical isolator is an optical component which allows the transmission of polarized light in only one direction.

Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses

Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm

We can offer TGG crystal with specs:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
