Crystro Terbium Gallium Garnet Single Crystal Rods For Faraday Isolator

Brand Name : Crystro

Model Number : CR211230-06

Certification : SGS/ROHS/REACH

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 10000pcs per week

Delivery Time : 3-4 weeks

Packaging Details : Transparent clean box

Product Name : terbium Gallium Garnet

Chemical Formula : =TB3Ga5O12

Advantage : High Power,Low Absoprtion Loss

Lattic value : a=12.355Å

Extinction Ratio : <40dB

Brand name : CRYSTRO

Origin : China

Application : Faraday Rotator Isolator

Contact Now

Crystro Terbium Gallium Garnet Single Crystal Rods For Faraday Isolator

The growth and characterization of terbium gallium garnet (TGG) for high average Faraday isolators is reported. The main technique of TGG single crystals growing is Czochralski method. Key physical parameters of the grown crystals are measured: thermal conductivity, heat capacity, thermal expansion coefficient, refractive index thermal dependence, optical damage threshold and spectral function of Verdet constant.

Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.

CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter

Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm

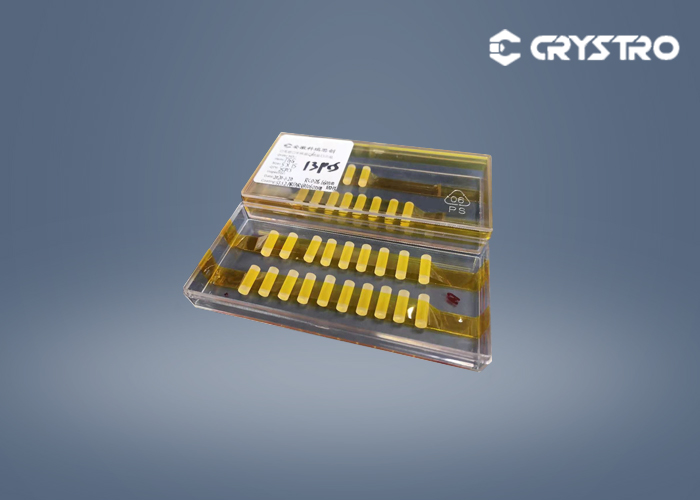

Crystro Terbium Gallium Garnet Single Crystal Rods For Faraday Isolator


Product Tags:

Terbium Gallium Garnet Single Crystal Rods



Faraday Isolator Single Crystal Rods



TB3Ga5O12 Optical Crystals
