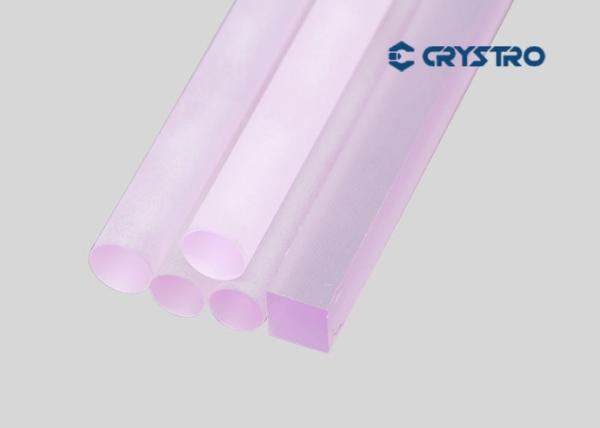

3x3mm Y3Al5O12 Nd YAG Laser Crystal For Laser Marking

Brand Name : Crystro

Model Number : NY-1

Certification : SGS/ROHS/REACH

Place of Origin : China

MOQ : 1pc

Price : USD 100-2000/pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500pcs per month

Delivery Time : 4-5 weeks

Packaging Details : Gift box or clean box

Item name : Nd:Y3Al5O12

Size : 3x3mm

Lattice structure : a=12.01A

Grow method : Czochralski

Hardness : 8.5 Mohs

Refractive index : 1.82

Density : 4.5g/cm3

Tolerance : ±0.1

Contact Now

Crystro 3x3mm Nd:Y3Al5O12 Nd:YAG laser crystal for laser marking

Nd: Y3Al5O12) or yttrium aluminum garnet crystal, yttrium aluminum garnet crystal is its active substance, the Nd atom content in the bulk crystal is 0.6-1.1%, it is a solid-state laser, which can excite pulsed laser or continuous laser, The emitted laser light has an infrared wavelength of 1.064 μm.

Main Advantages:

  • High gain
  • Low threshold
  • High efficiency
  • Low loss at 1.06 μm
  • Good thermal conductivity and thermal shock characteristics
  • Mechanical strength
  • High optical quality

Main Properties:

Chemical Formula Nd:Y3Al5O12
Lattic Parameter a=12.01Å
Growth Method Czochralski
Density 4.5g/cm3
Mohs Hardness 8.5
Melting Point 1970℃
Refractive Index 1.82

CRYSTRO supply Nd:YAG crystal with:

Dimention Diameter from 3 to 40mm
Nd Dopant level From 0.3-1.5 atm%
Wave Front Distortion 1/8 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.5mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 10 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%
Damage Threshold >500MW/cm2
