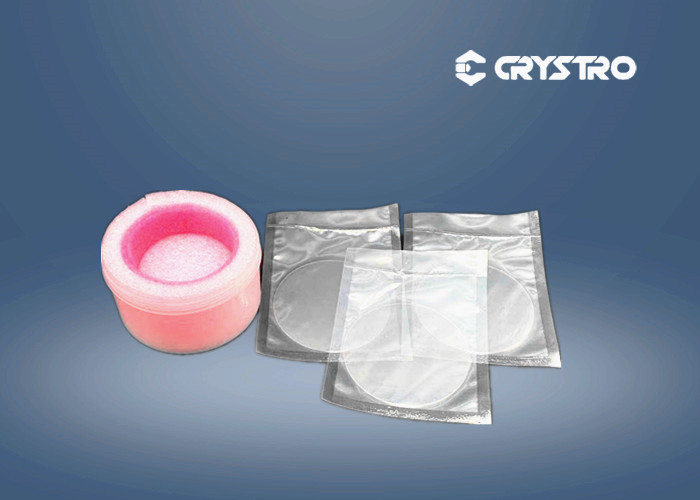

Custom Gd3Ga5O12 Single Crystalline Substrates For Microwave Devices

Brand Name : Crystro

Model Number : CR210508-03

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs per month

Delivery Time : 2-4weeks

Packaging Details : Transparent clean box

Material : Custom Gd3Ga5O12 Single Crystalline Substrates

Lattice Constant : 12.383A

Density : 7.13g/cm3

Warranty : 1 year

Package : Vaccum Packing

Refractive Index : 1.954 at 1064nm

Optical loss : <0.1%/cm

Thermal Conductivity : 7.4W m-1k-1

Contact Now

Custom Gd3Ga5O12 Single Crystalline Substrates

GGG is also substrate material for microwave devices.
In the optical communication devices,require a lot of using 1.3u and 1.5u optical isolator,which core component is the YIG or BIG film been placed in a magnetic field.
GGG has been successfully applied in the magnetic refrigeration industry in the temperature zone below 20 k for market HeII flow and helium-nitrogen liquefaction pre-stage refrigeration.

Crystro's GGG has low optical lossed(<0.1%/cm),high thermal conductivity(7.4W m-1K-1),High laser damage threshold(>1GW/cm2)

CRYSTRO offers:
SizeMax 4inch dia
Thickness0.5mm, 1.0mm
PolishingSingle or double side
Orientation<111>,<100> ±2°
Edge orientation accuracy<2°
Edge Cuttingcustom
Roughness<0.5nm
Packagethousand grade clean room,vaccum bags

Orientation[111] within ±15 arc min
Wave Front Distortion<1/4 wave@632
Diameter Tolerance±0.05mm
Length Tolerance±0.2mm
Chamfer0.10mm@45º
Flatness<1/10 wave at 633nm
Parallelism< 30 arc Seconds
Perpendicularity< 15 arc min
Surface Quality10/5 Scratch/Dig
Clear Apereture>90%
Large Dimensions of Crystals2.8-76 mm in diameter



Compare GGG with SGGG:

MaterialGGGSGGG
Chemical FormularGd3Ga5O12Substituted GGG
Lattice Constant12.383A12.497A
Growth MethodCzochralskiCzochralski
Density7.13g/cm37.09g/cm3
Mohs Hardness87.5
Melting Point1725℃1730℃
Refractive Index1.954 at 1064nm1.954 at 1064nm


document:

GGG SGGG NGG Crystal.pdf

Crystro has perfect automatic production machine, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG ,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG crystals.
We also established a crystal research center and developed different kinds of crystals. Keep providing technical support and training for new applications and product development staffs.
