Density 5.91g/Cm3 Block TSAG Optical Crystals

TSAG Crystals For Faraday Isolator Large Verdet Constant Than TGG Crystals

Description:

TSAG Faraday crystal is an ideal magneto-optical crystal, which is mainly used in the wavelength range of 400-1600 nanometers, namely the visible and infrared bands. TSAG is an indispensable crystal for the next generation of high-power lasers due to its advantages of high constant, good thermal and mechanical properties. Compared with TGG, the Verdet constant at 1064 nm of TSAG is 20 % higher and the absorption is 30 % lower. Recently, the optical and scintillation properties of TSAG (Tb3Sc2Al3O12) crystal was investigated, and capabilities to be used as a scintillator screen was demonstrated.

Features:

• Large Verdet constant(48 radT-1m-1 at 1064 nm),about 20% higher than that of TGG;

• Low absorption(＜3000 ppm/cm at 1064 nm),about 30% less than that of TGG

• High power compliant;

• Low thermally-induced birefringence;

• Making the isolator small.

Applications:

• Faraday isolator based on TSAG crystal for high power lasers

• Imaging applications:Scintillation properties of TSAG crystal for imaging applications

Main Properties:

CRYSTRO supply TGG crystal with:

gadolinium gallium garnet

ggg substrate

TSAG Block Optical Crystals

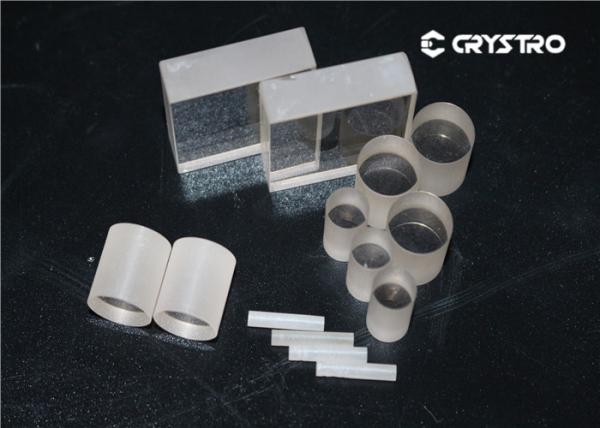

Density 5.91g/Cm3 Block TSAG Optical Crystals Images
